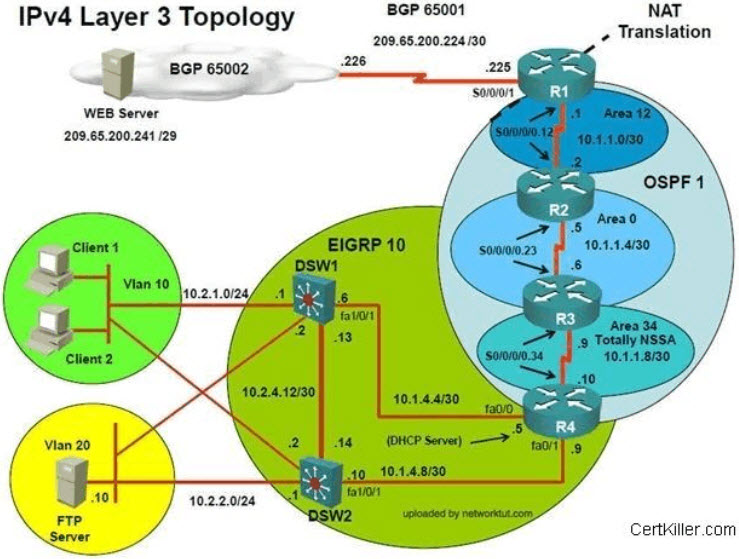

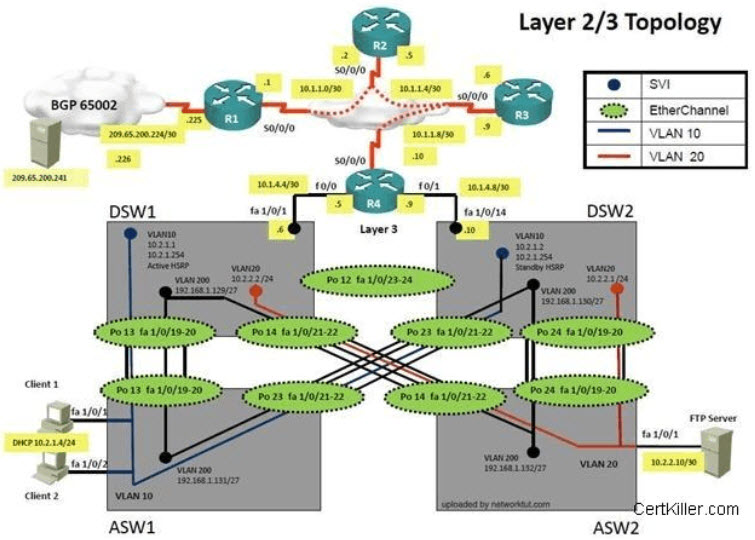

单项选择题 Following ticket consists of a problem description and existing configuration on the device. Figure 1 Figure 2 Trouble Ticket Statement Client 1 is not able to reach the WebServer. Initial troubleshooting shows that DSW1 can ping the Fa0/1interface of R4 but not the s0/0/0/0.34 interface. Configurationon DSW1 router eigrp 10 network 10.1.4.4 0.0.0.0 network 10.2.1.1 0.0.0.0 network 10.2.4.13 0.0.0.0 no auto-summary Configurationon DSW2 router eigrp 10 network 10.1.4.8 0.0.0.0 network 10.2.2.1 0.0.0.0 network 10.2.4.14 0.0.0.0 no auto-summary Configurationon R4 router eigrp 10 network 10.1.4.5 0.0.0.0 no auto-summary redistribute ospf 1 metric 100 10 255 1 1500 route-map EIGRP_to_OSPF ! router ospf 1 network 10.1.1.8 0.0.0.0 area 34 redistribute eigrp 10 subnets! route-map EIGRP→OSPF match ip address 1! access-list 1 permit 10.0.0.0 0.255.255.255 access-list 1 permit 209.0.0.0 0.255.255.255 The Fault Condition is related to which technology？（）

A、EIGRP

B、Route Redistribution

C、OSPF

D、IP Addressing

  • B
